Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode

Product Categories
Shenzhen Rakinda Technology Development Co., Ltd.
Contact Now

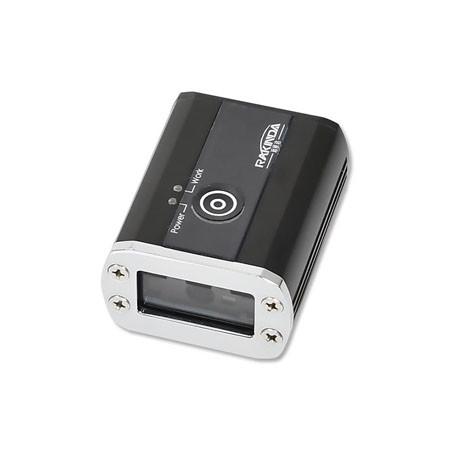

Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode

Brand Name : RAKINDA

Model Number : LV3000UPLUS

Certification : CE, RoHS

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 200PCS/Week

Delivery Time : Within 5 working days after receiving the balance

Packaging Details : Normal craft paper and foam

Image Sensor : 1280*800 CMOS

Illumination Aiming : White LED laser diode or gree LED

 Resolution : >=3 mil

Interface : RS-232, USB

Weigh : 75g

Dimensions : 63(W)*45(D)*28(H)

Contact Now

Rakinda LV3000U PLUS Industrial Fixed Barcode Reader Android Barcode Scanner Module
Fixed Mount Barcode Scanner Product Features
* IR / light sensor dual trigger mode
* Excellent 1D/2D barcode reading performance * Automatic exposure control
* Clear laser cross aiming light
* IP68 protection rating * 3 m anti-drop


Courier Cabinets, Ticket Checking Machines, Display Kiosks, Various Self-service Cabinet Application Equipment, Etc., Very Suitable for Use in Various Production Lines, Assembly Line Barcodes Detection and Scanning.

Product Parameters

Performance Image Sensor 1280*800 CMOS
Illumination Aiming White LED laser diode or gree LED
Symbologies 2D PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect.
1D EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.
Resolution >=3 mil
Typical Depth of Foeld EAN-13 55-360mm(13mil)
Code 39 70-180mm(5mil)
PDF417 55-160mm(6.7mil)
Data Matrix 50-170mm(10mil)
QR Code 40-210mm(15mil)
Scan Mode Sense mode, Continuous mode, Level mode, Pulse mode
Scan Angle Roll:360d, Pitch:±55°, Skew:±55°
Field of View Horizontal 51°, Vertical 32°
Min Symbol Contrast 25%
Mechanical Electric Interface RS-232, USB
Dimensions 63(W)*45(D)*28(H)
Weigh 75g
Notification Beep, LED indicator
Rated Power Consumption 1622mW(typical)
Operating Voltage 5VDC±-5%
Current SVDC Operating 276.8mA(typical), 322.7mA(max.)
Standby 83.3mA
Environmental Operating Temperature -20℃ to 60℃(-4℉ to140℉)
Storage Temperature -40℃ to 70℃ (-40℉ to 158℉)
Humidity 5% to 95% (non-condensing)
ESD ± 14kV (air discharge), ±8kV (direct discharge)
Drop 1.5m
Sealing IP68
Certifications FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC
Environmental Cable USB Used to connect the LV3000U to a host device
RS-232 Used to connect the LV3000U to a host device
Power Adapter DC5V adapter to power the LV3000U with RS-232 cable

Application Scenario

Android RS232 IP68 CMOS Fixed Barcode Reader Dual Trigger Mode

LV3000U Plus Barcode Scanner Datasheet.pdf
